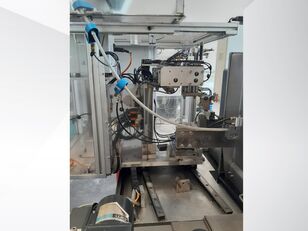

Tschudin EcoLine 400 Centerless cylindrical grinding machine
Kaiserslautern
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+49 162 40...
Show
+49 162 4027581
Germany, Kunde
Germany, Hamburg
15,000 kg
Germany, Hamburg
Germany, Eppstein
Germany, Landsberg am Lech
Germany, De-24340 Eckernförde
Germany, Hamburg
Germany, Hamburg
Germany, Hess. Oldendorf
Germany, Saarlouis
Germany, Bad Waldsee
Germany, Regensburg
Germany, Hamburg
Germany, Kunde
Germany, Lemgo
Germany, Hamburg
Germany, Baienfurt
Germany, Kunde
Germany, Eltmann
Germany, Kettenkamp
Additional equipment
Kraft & Bauer Fire extinguishing system, Type FB703S-UV3-TFM70°/KLA 6-S-MV / Knoll microfilter, Type Micro Pur 240 F / Streuli lifting station, Type SHSRT300-TL142/180
Machine Benefits
Technical Machine Benefits
Through-feed grinding working area: 1. 5 – 100 mm workpiece diameter / plunge grinding working area: 1. 5 – 100 mm workpiece diameter / maximum grinding length: 250 mm
Max. Outer diameter: 400 mm / inner diameter: 203. 2 mm / max. Width: 250 mm / peripheral speed: 50 m/s / drive power: 11 kw (with balancing device)
Max. Outer diameter: 225 mm / inner diameter: 127 mm / max. Width: 250 mm / speed range: 0-265 rpm / max. Inclination angle: +5/+5° / drive power: 3. 7 kw
Extra Information
Tools for grinding process
Tool set
Parts 19085 and 19575 Through-feed grinding
Illustration of grinding arrangement and tool design
Tool design
Illustration of grinding arrangement and tool design
Workpiece support
Workpiece support incl. drawing)
Corundum grinding wheel
Regulating disc
SS flange © 203.2 mm with cover
Second-hand, 50% discount
Grinding wheel mounting flange @ 203.2 mm with cover
RS flange © 127 mm with cover
Second-hand, 50% discount
Regulating disc mounting flange © 127 mm with cover
Tool set
Drive shaft 13819 Plunge grinding
Illustration of the grinding arrangement and design of the tools Tool design
Illustration of the grinding arrangement and design of the tools
Workpiece support
Workpiece support (incl. drawing)
3 corundum grinding wheel
3 regulating discs
4 intermediate ring
1 dressing diamond for grinding wheel
1 dressing diamond for regulating disc
Cooling and filter system
KM Streull lifting station type SHSRT300
Streuli coolant lifting station type SHSRT300: Capacity 300 litres, with coolant pump 1.1 kW, output 150 |/min, 10 metres delivery height.
A second tank with fresh water is integrated into the system for cooling the linear motors and the grinding spindle
(pump 0.24 kW, output 50 min, / delivery height max.
5 m). There is a heat exchange between the two tanks.
Mobile version with 4 swivel castors. The lifting station is located under the machine.
Price includes interface and control via the machine control system, colour grey RAL 7036.
Automation
Conveyor belt unloading under RS
Conveyor belt for unloading under the regulating disc: It transports the parts forward out of the machine after they have passed through the grinding process.
The drive motor has a speed controller for infinitely variable belt speed adjustment. Switching on and off is carried out by means of CNC control. The belt is attached to the support block.
A drip tray under the belt collects and recycles the remaining coolant.
The length is 1200 mm, the width 50 mm. The maximum possible diameter of the workpieces is 40 mm.
Inclined chute with workpiece container
The parts roll gently down into a collection basin flooded with coolant. Inside is a perforated metal basket, which is used to remove the finished workpieces from the collection basin.
Arbeitsbereich Durchgangsschleifen
Werkslück-Durchmesser bis 50 mm
Arbeitsbereich Einstechschleifen
Werkstück-Durchmesser bis 100 mm
Grösste Schleiflänge bis 270 mm
Schlelfscheibe
Aussendurchmesser © 400 mm
Innendurchmesser 0ี 203,2 mm
Breite max (Form Typ 1) 250 mm
Breite max.(Form Typ 7) 275 mm
Umfangsgeschwindigkeit stufenlos, V-konstant (max, 2'390 U/min) 50 m/s
Antriebsleistung (Option: Spindel 29 kW mit Gegenlagerung) 11 kW
Regelscheibe
Aussendurchmesser © 250 mm
Innendurchmesser ซี 127 mm
Breite max. (Form Typ 1) 250 mm
Breite max. (Form Typ 7) 275 mm
Drehzahlberelch stufenlos, V-konstant 5 - 1'000 L/Min.
Neigungswinkel max. +5*1-5°
Antriebsleistung 3,7 KW
Positionierungsgenauigkeit (alle 3 Achsen U /X /W) 0,1 um
Aufiosung der Glasmassstabe 0,05 um
Elektrische Ausrüstung
Eingangsspannung (+/- 10%) 3 x 400V / 50 Hz
oder 3X480V / 60 Hz / oder nach Kundenwunsch
Steuerspannung DC 24V
Anschlussleistung ab 25 kVA
Zulässige Umgebungstemperatur +15/ +40€
Lärmentwicklung 68 dBA
Druckluftzufuhr (Sperrluft) 1,5 - 6 bar
Die Druckluft muss rein und trocken sein laut DIN-ISO 8573-1 (wenn
application type: Grinding
Location: Germany
machine type: Centerless Grinding Machine
control unit brand: FANUC
Control Brand: FANUC
Control Model: 21i-MB
Machine Depth: 2000 mm
