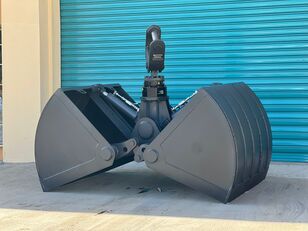

The 4-cylinder Clamshell Grab Bucket, designed by Nur Group, is a heavy-duty attachment developed for fast, safe, and efficient handling of high-density materials. With capacity options ranging from 0.5 m³ to 28 m³, it can be easily integrated into excavators, cranes, and ship cranes of various tonnages.
Clamshell Bucket Features
Capacity Range: 0.5 m³ – 28 m³
Number of Cylinders: 4 double-acting hydraulic cylinders
Operating Pressure: 180 – 260 bar
360° Rotation Unit: Optional hydraulic rotator support
Application Areas
Mining and quarry operations
Port loading/unloading
Scrap handling
River and canal dredging
Aggregate and sand transportation
Materials Used
Body and Grab Jaws
Hardox® 400 / 450 or Domex® high-strength steel
Long-lasting and impact-resistant structure against wear
Cylinder Sleeves and Pistons
Made from induction-hardened 42CrMo4 steel
Sealing elements by Parker, Hallite, Merkel
Pins and Bushings
Heat-treated 42CrMo4 steel
Surface hardness: 50–55 HRC
Nickel plating for corrosion resistance
Cutting Edges
HB500 wear plates
Optional bolted, replaceable tip system
Production Process
✅ Design and Engineering
Maximum durability with CAD modeling and FEA analysis
✅ Cutting and Bending
Precision manufacturing using CNC plasma/laser cutting and press brake machines
✅ Welding
High-strength joints with MIG/MAG and submerged arc welding technologies
✅ Assembly and Testing
Hydraulic system assembly followed by high-pressure tests and quality control
✅ Painting and Protection
Industrial 2+2 paint system for high corrosion resistance
Optional C5-M paint for marine environments
Why Choose Nur Group Engineering - NG Attachments Clamshell Buckets?
✔ High closing force for dense materials
✔ Low maintenance cost with long-life Hardox structure
✔ Flexible volume and connection options
✔ All models customizable on a project basis
✅ High-capacity clamshell bucket production from 0.5 m³ to 28 m³
✅ Suitable for various applications such as excavator attachment, port grab, scrap handling bucket
✅ All models are designed and tested according to industrial standards
If you're looking for a durable and efficient clamshell bucket tailored to your project, discover Nur Group Engineering.
Contact us now for quotation and technical support.
